LinkedIn Login

LinkedIn Login lets a domain's users sign in to the Hub with their LinkedIn account instead of (or alongside) a Hub password. It is one branch of the shared federation framework that also drives SAML SSO — see that page for the mechanics common to every provider (routing, dynamic strategy resolution, the shared verify function, legacy_callback_url rules, and the Helix provider signal).

Supported Features​

  • OAuth2 / OpenID Connect sign-in: uses LinkedIn's openid profile email scopes via passport-linkedin-oauth2.
  • Per-domain configuration: each domain can have its own LinkedIn app credentials (clientID / clientSecret), configured by an admin in Admin → Settings.
  • Find-or-create user matching: on first login, a user is created (or matched to an existing account) using the LinkedIn-provided email address; existing users are updated and reactivated if previously soft-deleted.
  • State passthrough: an incoming RelayState query parameter (the same mechanism used for SAML) is forwarded as the OAuth2 state, so post-login redirects work the same way for both providers.

Implementation Details​

Repo: 5app/hub

Configuration​

In the domainFederations table (see SSO Login: Configuration for the shared columns), LinkedIn rows use type: 'linkedin', with clientID and clientSecret holding the LinkedIn app credentials — the SAML-only columns (entryPoint, cert, etc.) are unused.

LinkedIn strategy (auth/modules/federation/linkedin.js)​

  • Overrides LinkedInStrategy.prototype.userProfile to call LinkedIn's OpenID Connect GET /v2/userinfo endpoint directly (rather than the library's default profile endpoint), mapping sub / given_name / family_name / name / email into a Passport-shaped profile (provider: 'linkedin', id, name, displayName, emails).
  • Overrides authenticate to read req.query.RelayState and forward it as the OAuth2 state param, matching the SAML RelayState convention used elsewhere in the login flow.
  • Requests scopes openid profile email.
  • Its callbackURL is always https://{hostname}/auth/federation/callback — it never includes a domainFederations.id, regardless of which row matched (see the legacy_callback_url note below).
  • On a successful callback, its verify function builds:
    {
      nameID: profile.id,
      first_name: profile.name.givenName,
      last_name: profile.name.familyName,
      email: profile.emails.pop().value,
      federationId,
      provider: 'linkedin',
    }
    and hands this off to the shared verify function. The provider: 'linkedin' marker is what makes LinkedIn logins distinguishable from SAML ones once persisted — this is the concrete signal behind isLinkedinLogin (see SSO Login: Federation provider signal for Helix).

Activating for a hub​

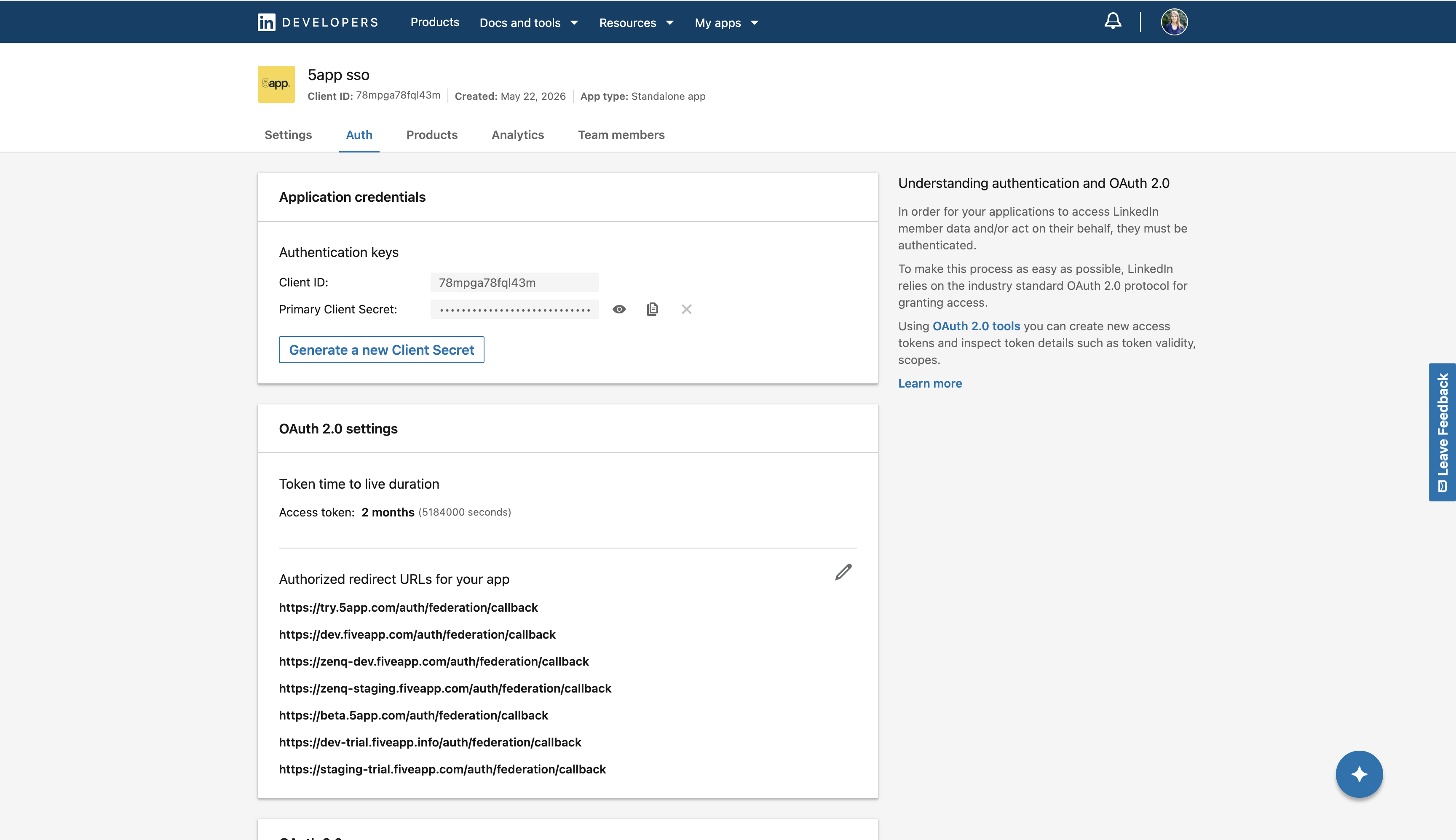

The 5app LinkedIn app for SSO is located at LinkedIn Developers app. Its Auth tab holds the Client ID/Secret (domainFederations.clientID / clientSecret) and the Authorized redirect URLs for every hub domain that uses LinkedIn login:

LinkedIn Developer app Auth settings

Every redirect URL registered here has the form https://{domain}/auth/federation/callback — with no domainFederations.id segment, confirming why legacy_callback_url: 1 is required below (see SSO Login: legacy_callback_url rules for the general rule).

To activate LinkedIn login for a hub, add a new entry to the domainFederations DB table:

domain_id: {hub domain id}
identity: linkedin
type: linkedin
config: {"preferred": true, "buttonSubtitle": "LinkedIn", "domainAuthority": ""}
clientID: {LinkedIn app client id}
clientSecret: {LinkedIn app client secret}
signatureAlgorithm: sha256
is_deleted: 0
legacy_callback_url: 1
legacy_callback_url must be 1

The LinkedIn strategy's callback URL never includes a domainFederations.id (see above), so its row must always be the domain's legacy_callback_url: 1 row. If any other federation provider is configured for the same domain_id, ensure those rows have legacy_callback_url set to 0 and that their callback URLs include their own domainFederations.id.
